Asus P1 Pico Projector - small and portable

Item #: ASUSP1 | Grades K-12
$325.00
*
*
*
*
*

Share/Bookmark
Experience bright, crystal clear 40" HD 1280 x 800 projections from a distance of only 1 meter. At this size, even 8-point fonts can be seen and read clearly. The use of an energy-efficient LED light source delivers a 10X longer lifespan along with bigger savings. Additionally, it also ensures whisper-silent operation.

ASUS Set-n-Go Technology for Instant On/Off, Instant Height Adjustment, and Auto Keystone Correction for quick, easy use. It tips the scales at just 415g, and has dimensions similar to a CD case. Its compatibility with most ASUS laptop power adapters makes it the ideal ASUS educational presentation combo.

Key Features

Award-Winning Design ASUS Design engineers penned the lines of the P1 with the user in mind, giving it the instant height adjustment flip-down stand and making it compatible with most ASUS notebook AC power adapters. Its internal thermal design and the use of highly thermal conductive magnesium alloys together increase cooling efficiency to ensure the P1 operates silently and rarely overheats. The P1 joins a long list of award-winning designs that come from the ASUS Design offices; it recently bagged the Good Design Award in Japan and iF Product Design Award in Germany.

Bright, Crystal Clear Display Sharp images, crisp text and vibrant colors are all possible thanks to the most innovative and updated DLP technology. Moreover, the mercury-free eco-LED light source used in the P1 has a lifespan of up to 30,000 hours. To put that into perspective, it would last for 20 years if it is used 4 hours daily. Additionally, it also ensures whisper-silent operation. Operating at a brightness of 200 ANSI lumens to allow project displays with professional precision and complete clarity of color and detail. The P1 is able to display content and visuals in HD 1280 x 800, so whatever is seen on screen precisely matches the original content viewed on a notebook or PC.

Auto Keystone Correction An Auto Keystone Correction feature can detect the P1’s orientation and automatically corrects distorted trapezoid images that result from an angled projection. This saves the user the time and hassle of having to adjust the image.

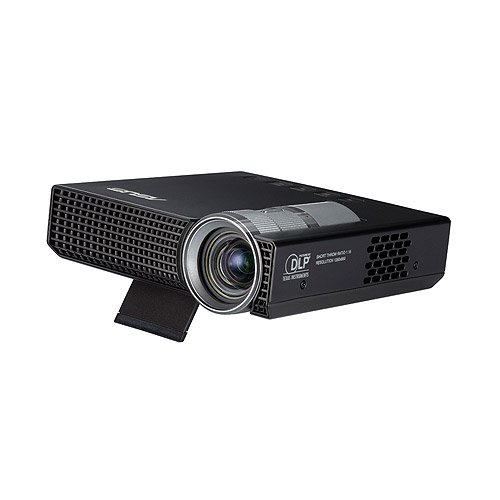

Short-Throw Projection and Instant Height Adjustment With a short throw ratio of 1.16:1, users can enjoy HD projections the equivalent of a 40" display with only one meter away from the screen. At this size, even an 8-point font can be visibly seen and read clearly. The P1 also enables instant height adjustment thanks to a flip-down stand that can be quickly adjusted to suit the task at hand; saving the user a considerable amount of time when compared with traditional adjustable screw-stands.

5 Seconds On and Instant Off The P1 can be quickly set up to provide crystal clear projections in as little as 5 seconds from power-up without any need for long warm-up times. There is no cooling down period required either, powering off instantly.

Utmost Mobility The ultra-slim and compact P1 tips the scales at just 415g, and has dimensions similar to a CD case (W12.5 x H3.3 x L13 cm). It fits most small bags, making it ideal for those constantly on-the-go. To further lighten the load, it works with most ASUS notebook AC power adapters (>65W).
Minimum system requirements: Technical Information

Display

Display Technology: 0.45" DLP®

Light Source: R/G/B LED

Light Source Life (max): 30000 hours

True Resolution (native): WXGA(1280x800)

Brightness (max): 200 ANSI lumens

Contrast Ratio (typical): 2000:1

Color Saturation :120%(NTSC)

Display Colors :1.07 Billion

Projection Lens

Throw Ratio: 1.16

Projection Distance: 0.5 ~3 meters

Projection/Screen Size: 20 ~120 inchs

Projection Offset: 100%

Zoom Ratio: Fixed

Video Feature

Picture Modes: 7 Modes, (Black board/White board/Dynamic Mode/Game Mode/Scenery Mode/Theater Mode/Standard Mode)

Keystone adjustment: Digital (Up to +/- 30 degree)

Auto Keystone: Yes

Aspect Ratio: 16:9/16:10/5:4

Projector Placement: Front Table/Front Ceiling/Rear Table/Rear Ceiling

Signal Frequency

Analog Signal Frequency: 31~79 KHz(H)/ 56~75 Hz(V)

Noise Level

Acoustic Noise: 28 dBA(Theater mode)

I/O Ports

PC Signal Input : D-sub 15 pin (through CEA 30pin)

Video Input : Composite Video: RCA x 1 (through CEA 30pin)

Mechanical Design

Chassis Colors: Black

On-machine Buttons: Yes, (Left/Menu/Right/Input Select/Power Key)

Tripod Socket: Yes

Supporting Stand: Yes

Security

Kensington lock

Dimensions

Physical Dimension(WxHxD): 125.5x 33.5 x130mm

Box Dimension (WxHxD): 230x 180x 122mm

Weight

Net Weight (Esti.): 415g

Gross Weight (Esti.): 1.3kg

Operation Temperature

5°C ~ 35°C

Operation Humidity

35%~85%

Package Contents

ASUS P1 Projector

30-pin CEA integrated cable(D-sub/Composite)

Power Adapter

Carrying Bag

CD(user manual)

Quick Start Guide

Warranty card
